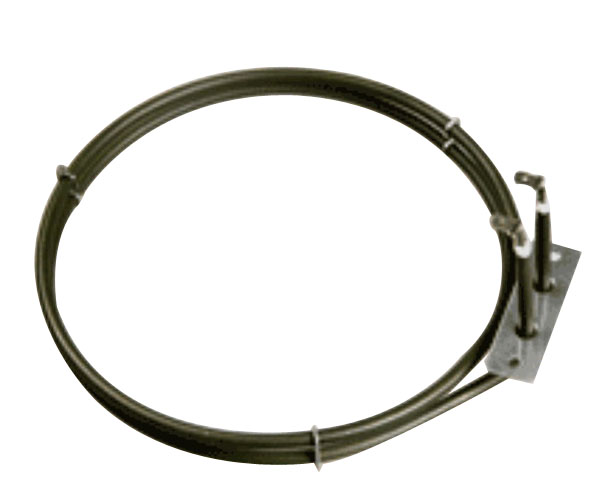

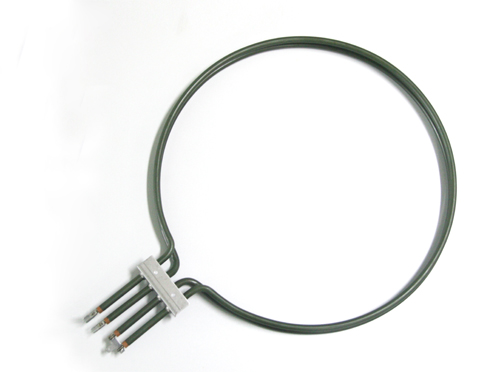

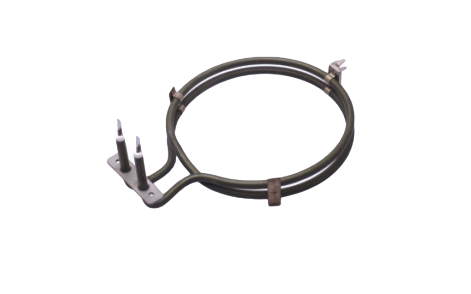

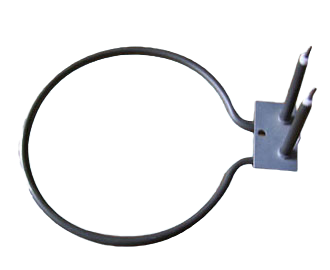

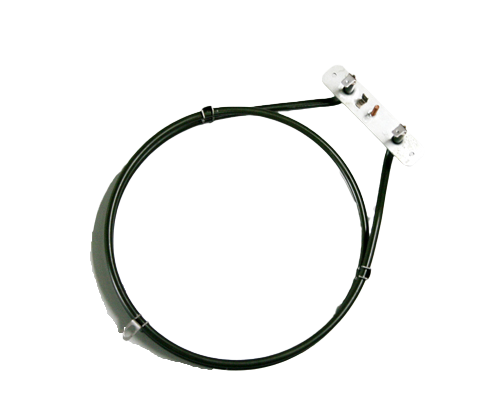

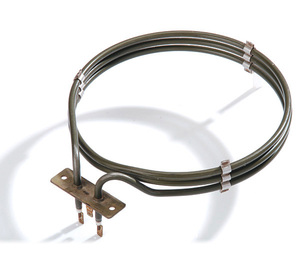

The convection tube is the convection heating surface of the boiler. Its function is to absorb the heat of high-temperature flue gas and increase the heating surface of the boiler.

CONVECTION TUBE

ꄲNext： Nothing

ꄴPrevious： WASHING MACHINE TUBE

Technical data for your reference: (can be customized according to your requirements)

Voltage : 110V,220V, 230V, 400V,etc.

Power: 800W, 1200W, 1800W, 2050W,2500W, 3000W, etc.

Diameter of tube : 5.2mm,6mm, 6.6mm ,6.8mm, 16mm ,etc.

Tube material : SS304 ,SS304L, SS321 ,SS316L,etc.

Internal insulation: MgO

Sealing type: PTFE, Ceramic , etc

Approval: ISO9001, ISO14001, VDE, UL, CQC, CE, etc. can be shipped to countries around the world.

HEATING ELEMENT

Inner of toaster

This is common types of toaster heating element, It is heated by heating wire radiation, and use mica sheet to insulate and keep warm. And there are 2 bake tanks, 4 bake tanks, and 6 bake tanks of our toaster heating element. You can choose the number of bake tanks according to your different market demand.

Stainless steel welding bucket

We use SUS304 Food Grade Stainless Steel,which stamp on the bucket,also make by high-tech Seamless Welding.You could see no seam inside the kettle,which looks beautiful and would not leave any scale.We do high quality brazing and welding with body and base plate.

TIME

The timer has the advantage of nicely precise structure, low defect rate, minimize the operation trouble, with high temperature resistance. It is widely used in washing machines, clothes dryers, microwave ovens, electric pressure cookers, ovens, fan motors and so on.

FINNED

SHOWER TUBE

The product quality has passed the European CE certification standards, meeting the requirements for the safety of water heater equipment and the life of accessories. In terms of material selection, it is necessary to achieve the anti-corrosion and anti-scaling properties of the pipe surface. Good electrical performance, meeting the safety performance of shower.

LIQUID EXPANSION THERMOSTAT

It is mainly composed of temperature probes, drive objects, capillary tube, membrane box. The working principle of liquid expansion thermostat is that when the temperature of the controlled object changes, the liquid in the temperature probe produces corresponding physical expansion and contraction, and the membrane box connected with the temperature probe expands or contracts, driving switch ON and OFF action, so as to achieve the purpose of constant temperature.

INSERTED THERMOSTAT

The inserted thermostat is widely applied in electrical kitchen appliances such as electric grill, pizza maker, electric deep-fryer, frying-pan, electric hot pot, fish roaster etc. ALL of our inserted thermostat will be made full inspection before shipment. We will use an automatic inspection device to check the wiring to ensure the quality of the wiring, which effectively avoids the misconnection, short circuit and disordering of L wire and ground wire , makes products safer and more reliable.

KETTLE THERMOSTAT

Application : Electrical kettle

SWITCH

Used in oven, plate hob, household appliances, mechanical equipment, etc. Working principle:By rotating the shaft,close or open the contacts,to realize multiple combinations.

INDUCTION COOKER PLATE

INDUCTION COOKER PLATE

SOLE PLATE

RADIANT PLATE

ADJUSTABLE THERMOSTAT

ADJUSTABLE THERMOSTAT

KSD

KSD301 The main principle is that one function of bimetal discs is snap action under the change of sensing temperature. The snap action of disc can push the action of the contacts through the inside structure, then caused ON or OFF of the circuit finally. The main characteristics are the fixation of working temperature, the reliable snap action, less flashover, less radio interference and longer working life.

DUAL-CASTING

OEM for you,customize according to yout specification and technical drawings.We could also supply Semi-products(Heating plate,body,Thermostat,lead wire,heating tubes, controller and so on)

MICA

Mica heating core is made of the finest nickel chrome wire and mica sheet. The mica carrier is twisted with the proper wire, sometimes is clamped by two mica parts. Mica heating core successfully solve the problem of delaminate that comes from different expansibility of different materials. Comparing with the structure of conventional air heater, it has better heating efficiency, much lighter and thinner.

CASTING

ALUMINUM CASTING

DIE-CASTING

ALUMINUM DIE-CASTING

COPPER TUBE

The copper electric heating tube is widely used in various devices such as saltpeter tanks, water tanks, oil tanks, acid-base tanks, fusible metal melting furnaces, air heating furnaces, drying furnaces, drying ovens, and hot press molds.

QUARTZ TUBE

The civilian ones are mainly used for heaters and convection ovens and electric barrel, electric stove ,electric heater and so on. It is pollution-free and is a clean heater that meets the high-tempo and high-quality requirements of modern production and is suitable for household appliances with high hygiene requirements.

IRON TUBE

Iron electric heating tube widely used in various high temperature furnaces, electric furnaces, drying equipment, industrial machinery manufacturing, castings, metal mold hole heating, cabinets, air heating, water tanks, open air and indoors, food machinery, plastics, rubber machinery, pressure vessels, tanks, and so on.

ALUMINUM TUBE

The aluminum heating tube widely used in electric kettles, coffee pots, iron showers , and other places in which needed.

COOKING HEATER

Cooker heater can also be called coiled heater. Advantages of this tube are easy to disassemble and install. Take special process by our company, this cooker heater has a function of anti-oil splash. With or without holder, it’s up to our customer’s requirements.

SILICON

Silicone rubber heater produced by our factory is extremely thin, light and flexible. And the heater can transfer heat to any required place,which improve heat transfer,speed warm-ups and reduce power need where controlled heating is required in confined areas.Glass fiber-reinforced silicon rubber can ensure the heater to be stable in dimension, without losing flexibility.

HOT RUNNER

TUBULAR

Tubular heaters

SPECIAL TYPES

CERAMIC

infrared heaters are available in following sizes : 60x245mm,60x122mm,60x60mm,122x122mm and 92x292mm. These heaters are also available with insulation.

CONVECTION TUBE

The convection tube is the convection heating surface of the boiler. Its function is to absorb the heat of high-temperature flue gas and increase the heating surface of the boiler.

WASHING MACHINE TUBE

The product quality has passed the European CE certification standards, meeting the requirements for the safety of washing machine equipment and the life of accessories. In terms of material selection, it is necessary to achieve the anti-corrosion and anti-scaling properties of the pipe surface.

OVEN TUBE

Tubular electric heating element is simple structure, high thermal efficiency, good mechanical strength, Small size and high power. Can be bent into different shapes according to requirements.

DEFROSTING TUBE

The defrost heating tube includes a heating tube, a heating wire inserted in the heating tube, and an elastic tube outside the heating tube. The elastic tube is a thermally conductive silicone tube and the insulation layer around the heating wire group. It is used to generate heat to defrost the refrigerator during defrosting. It has the advantages of high heat transfer efficiency, fast heat generation, sound absorption and noise reduction, stable product quality, safety and energy saving.
