It is mainly composed of temperature probes, drive objects, capillary tube, membrane box. The working principle of liquid expansion thermostat is that when the temperature of the controlled object changes, the liquid in the temperature probe produces corresponding physical expansion and contraction, and the membrane box connected with the temperature probe expands or contracts, driving switch ON and OFF action, so as to achieve the purpose of constant temperature.

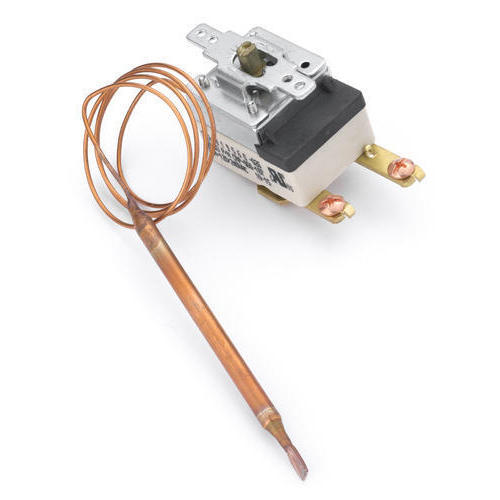

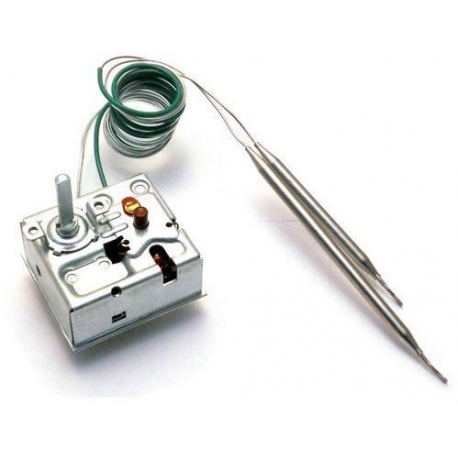

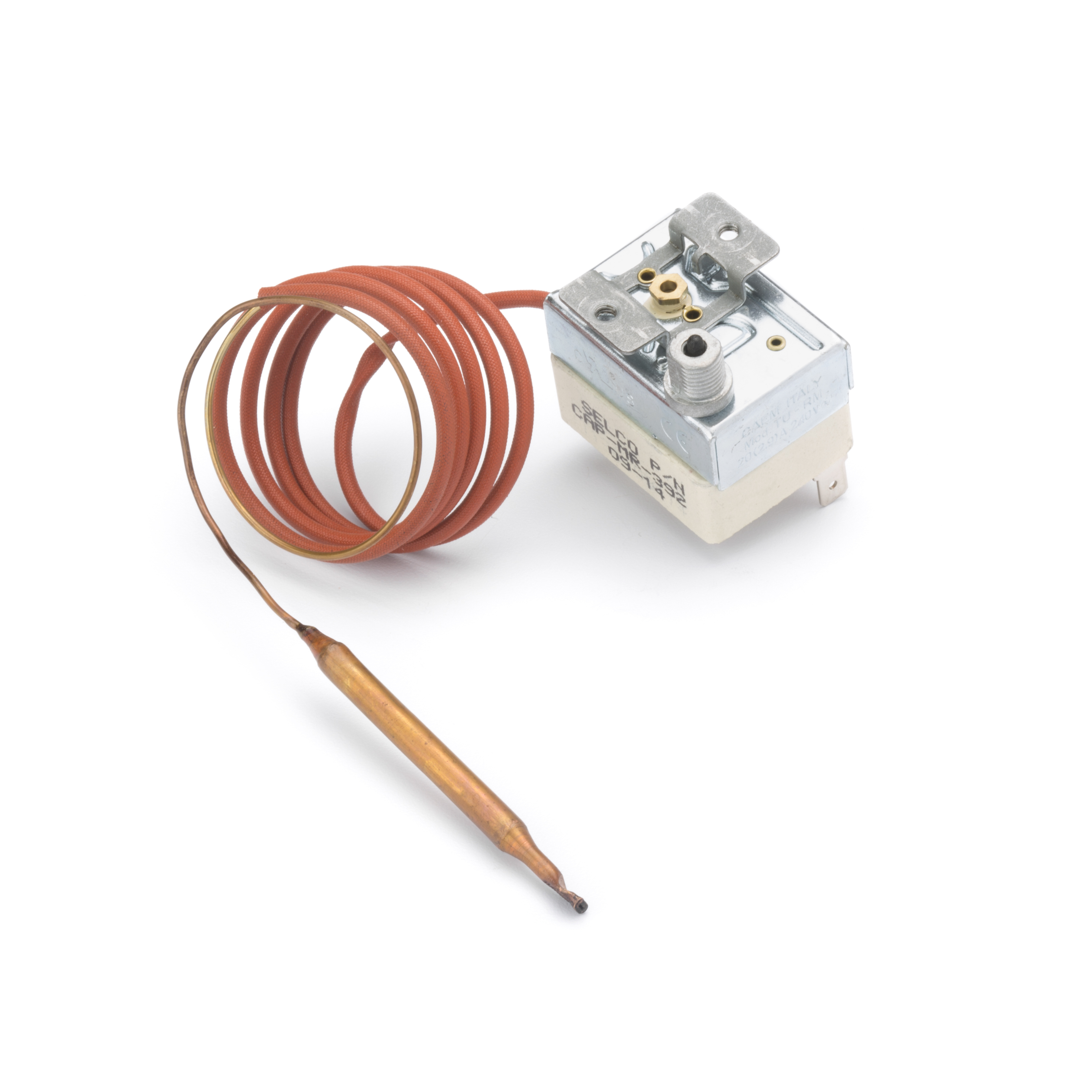

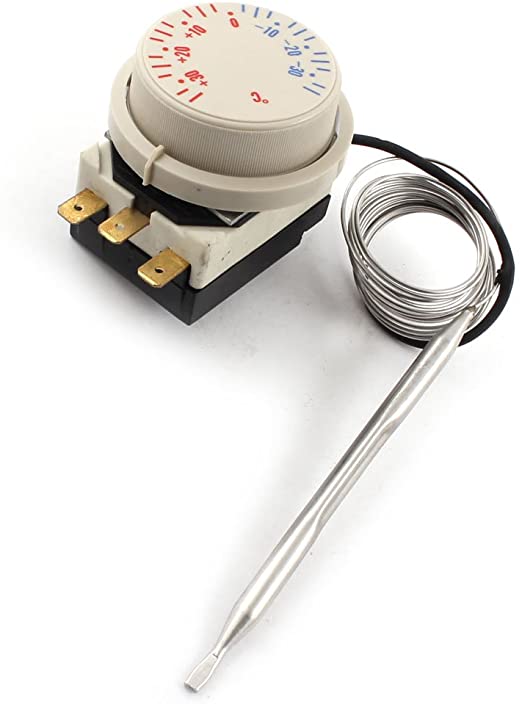

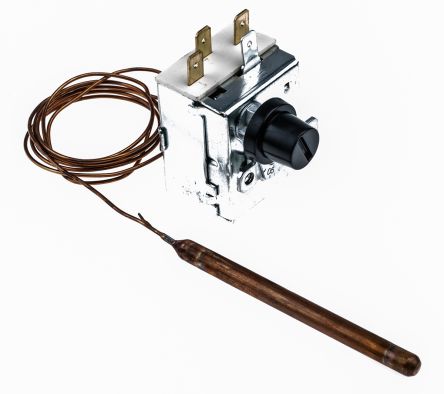

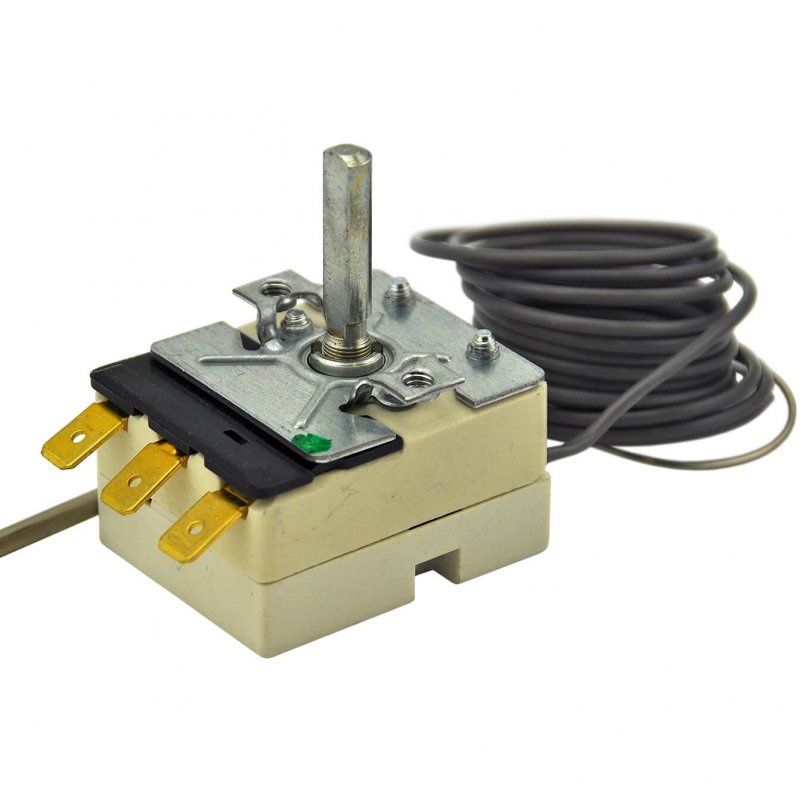

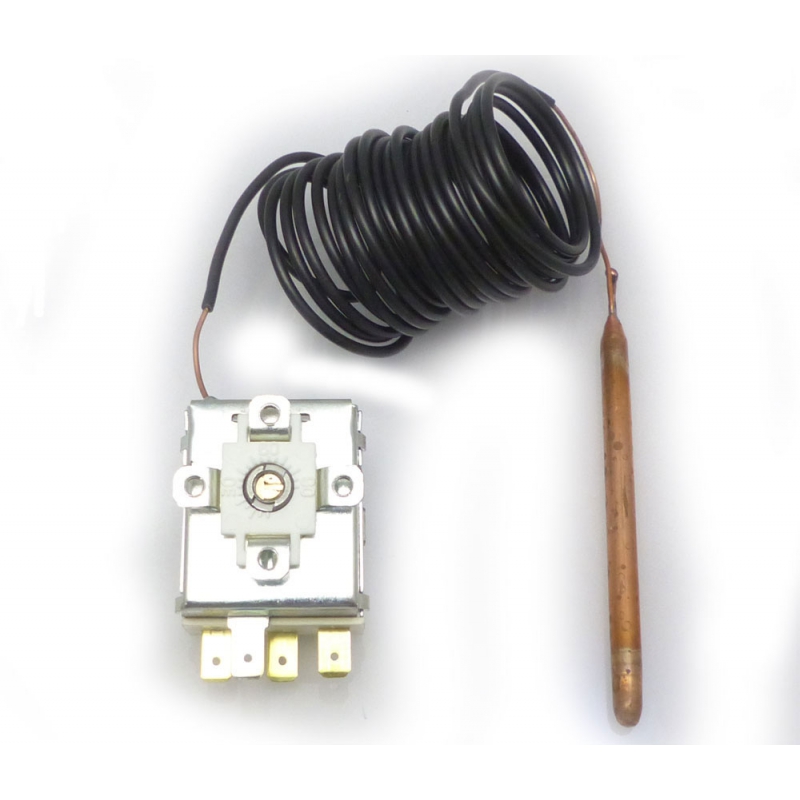

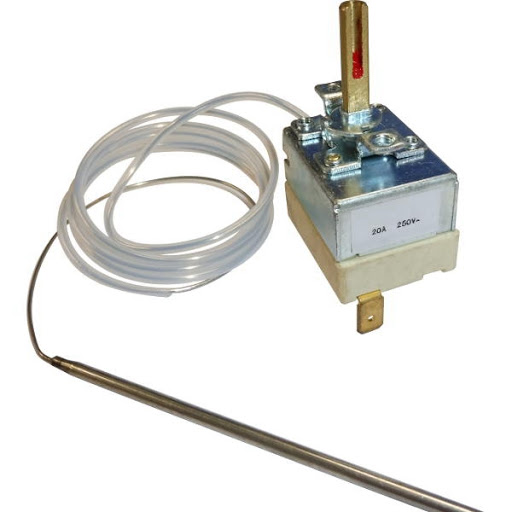

LIQUID EXPANSION THERMOSTAT

The liquid expansion thermostat is generally called capillary thermostat.

Technical parameters:

  1. Model: type E, type D, type F, type I, type S, type T, type TH, type X, type Y, type Z, type IG, type 711, type F/A2000 and so on
  2. Operating temperature range at L position: -25 – 350
  3. Operating temperature range at H position: -25 – 350
  4. Difference between ON and OFF : 2-15
  5. Capillary tube length: 350-3500MM
  6. Adjusting spindle length scope: 10-23MM
  7. Life time: 100 000 cycles
  8. Certificate: RoHS CE VDE CCC
  9. Market: Russia, South Africa, Spain, Columbia, Turkey, Brazil, Mexico, Ukraine, India etc.

They are widely used for some home appliances such as electric water heater, fryer, washing machine, electric oven, electric boiler, baking pan, sealing machine, fridge, drum washing machine, fuser etc.
